Optical Power/ Lux Meter Calibration Reference:

We provide calibration reference for Optical Power /Lux Meter mass-production line.

1. Current Meter 2. Device under Test 3. Integrating Sphere
4. Monochromator 5. Personal                  Computer 6. Power Supply
7. Silicon Detector 8. V(£f) Detector

9. 1/2 Axis Stepping Motor
10. Stepping Motor Controller 11. Light Box 12. Iris

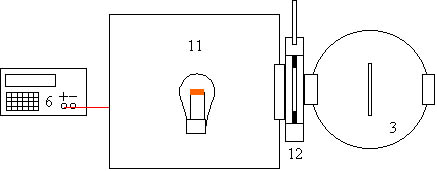

1. Intensity continuous variable uniform light source, output intensity range can be specified:

Power supply lights up the bulb in the light box, iris is mounted at the output port of light box to control optical flux enters integrating sphere  and hence control the illumination intensity at the output port of integrating sphere.
