Integrating Sphere

We provide high quality integrating sphere coated with imported high quality barium sulfate, whose refractive factor is over 95% in the visible range. Port number is an option, customized structures are also available:

2 Ports Sphere    3Ports Sphere   4 Ports Sphere

       General Specifications

........Back to Product

2 Ports Integrating sphere available structure and dimensions :

                                                                        unit: mm

Ø	O	T	R
50	14	2	20
100	14	2	20
200	14	3	20
300	14	4	20
500	14	10	20
1000	14	10	20

　    3Ports Sphere   4 Ports Sphere               <Top>

3 Ports Integrating sphere available structure and dimensions :

                                                                        unit: mm

Ø	O	R	T	Available θ
50	14	20	2	X	45	X
100	14	20	2	30	45	60
200	14	20	3	30	45	60
300	14	20	4	30	45	60
500	14	20	10	30	45	60
1000	14	20	10	30	45	60

　2 Ports Sphere       4 Ports Sphere             <Top>

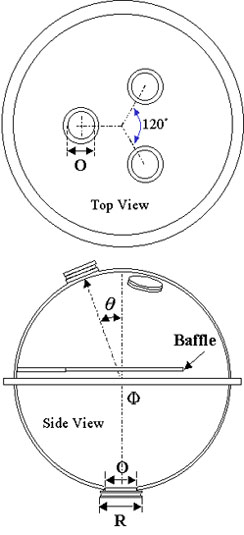

4 Ports Integrating sphere available structure and dimensions :

                                                                        unit: mm

Ø	O	R	T	Available θ
50	14	20	2	X	45	X
100	14	20	2	30	45	60
200	14	20	3	30	45	60
300	14	20	4	30	45	60
500	14	20	10	30	45	60
1000	14	20	10	30	45	60

　 2 Ports Sphere    3Ports Sphere               <Top>

  General Specifications:
